Signature Science 1810-100-001 MPCAD-CHEMERA Gas Chromatograph System

Signature Science 1810-100-001 MPCAD-CHEMERA Gas Chromatograph System

SKU IF_1D4BF1EA
by Buys Galore
$18,999.99 - $18,999.99
$18,999.99
$18,999.99 - $18,999.99
$18,999.99
YOUR CHANCE TO OWN AN EXTREMLEY LOW HOUR UNIT

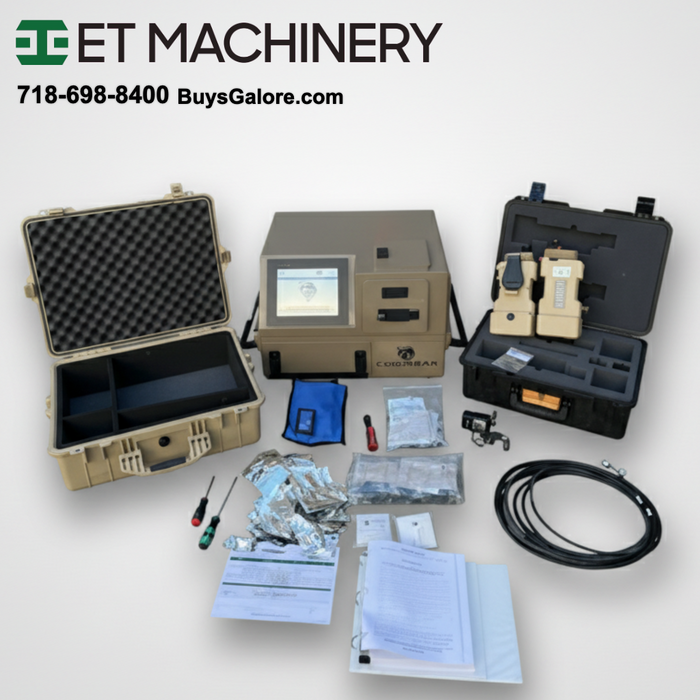

THIS UNIT COMES WITH ALL PICTURED ABOVE
ORIGINALLY THIS SET UP WAS OVER 250K

Chemical defense professionals can achieve laboratory-grade field identification with unmatched sensitivity, selectivity and
speed with CHEMERA®.

  • Analyzes solid, liquid, or vapor samples
  • Returns clear “detect/no detect” in just 60 seconds
  • No need for carrier gasses or columns
  • Single format sample media
  • Operable in full PPE or MOPP gear
  • Ruggedized to perform in the field environment (humidity, salt, dust, sand, and water)
  • Low maintenance burden
  • Capable of high sensitivity with low false alarm rates

Technology Ruggedized, Fieldable Chemical Identifier based on Quadrupole Ion Trap – Time of Flight Mass Spectrometer (QIT-TOF MS) and
novel identification algorithms
Threats Detects and Identifies Chemical Warfare Agents, Non-Traditional Agents, Explosives, Narcotics, Pharmaceuticals

Environmental

Operating Temp & Humidity 0°C to 45°C; 5 to 95%
Storage Temperature -20°C to 52°C

Physical Features

Dimensions 31.4″ x 24″ x 19″
Weight 42kg (47kg with Batteries)
Power AC Power or Rechargeable DoD Inventory Batteries
Cold Start Time <30m at 25°C; <1hr at 0°C
Input Voltage Standard 120 V
Probability of Identification 98%
Limit of Identification 100 Picograms

Sampling & Analysis

Sample Introduction Sample Trap (for surface swabs, solids and/or liquid); Vapor Trap
(for vapor collection using separate, handheld Vapor Collector)
Sample Phase Solid, liquid, vapor
Analysis Time Full identification in less than 60 seconds

System Interface

Communication USB, Ethernet
Data Storage 256 GB
Training Requirements Operator and Field Maintainer <16hrs
User Interface Ruggedized, 10.4” touchscreen monitor for system operation and display of real-time results and alarms. Audible buzzer (80 dB) for alarms.

Technology

Consumables Operational Check Traps and Sample Traps
Carrier Gas None required
Detector Quadrupole Ion Trap – Time of Flight Mass Spectrometer
Ionization Type & Source Photoionization
Mass Range & Scan Rate m/z 40 – 700
