Highlights
|

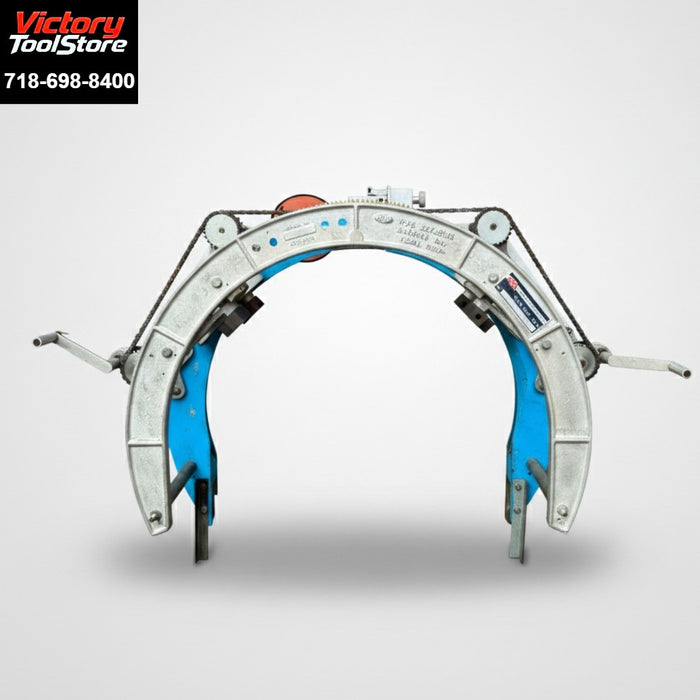

H&M Model #4 Pipe Beveling Machine
|
Designed for 20", 22", 24", and 26" pipe sizes
|
|
Features 7CS Solid Torch Holder for cutting accuracy
|
Equipped with H&M's Cuboid Spacer System for fast setup
|
|
Includes torch holder and dogs
|
Boomer chain is missing (replacement required for operation)
|
|

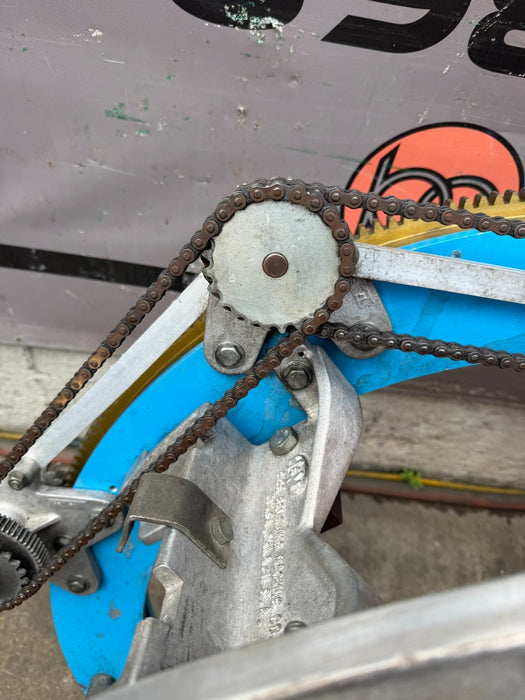

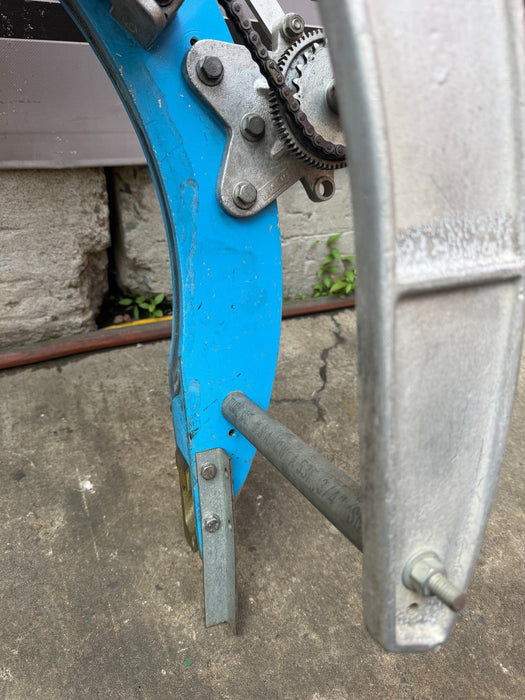

Durable design with separate saddle and ring gear components
|
|
Description

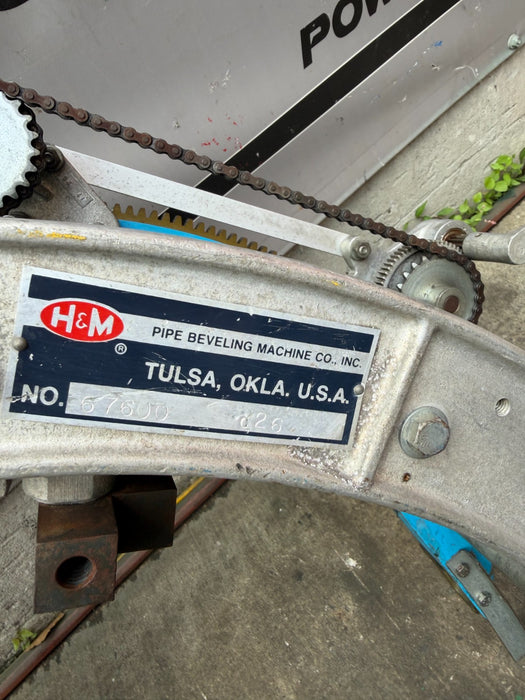

This listing is for a used H&M Beveling Machine Model #4, designed for precisely beveling 20", 22", 24", and 26" pipes. This robust unit is built to H&M's high quality standards, ensuring accuracy and durability for demanding industrial applications.

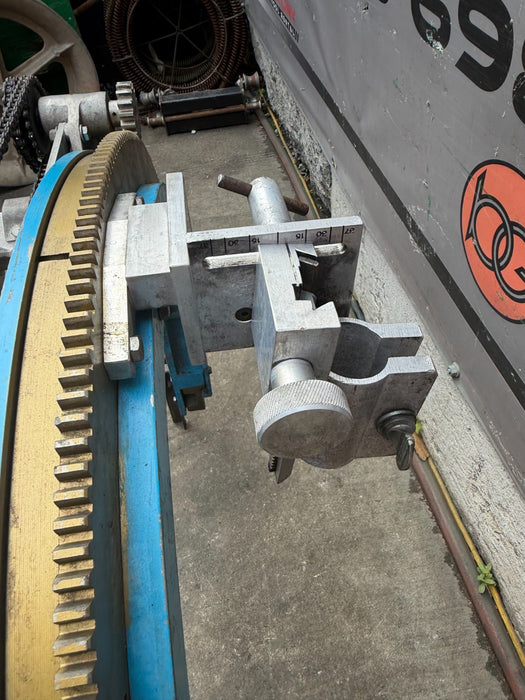

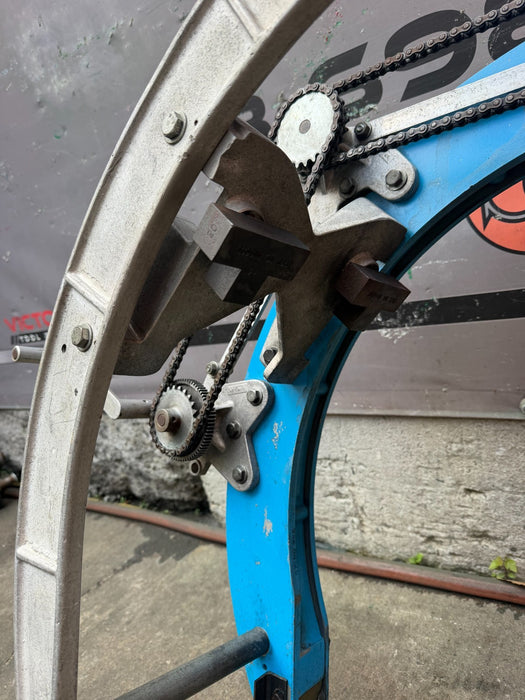

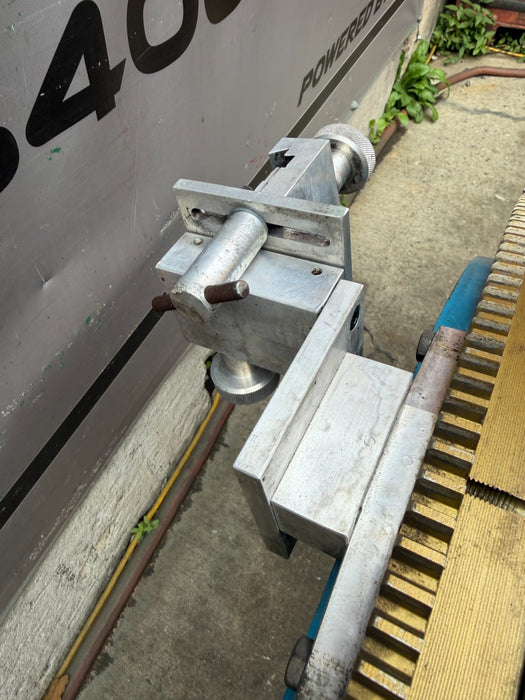

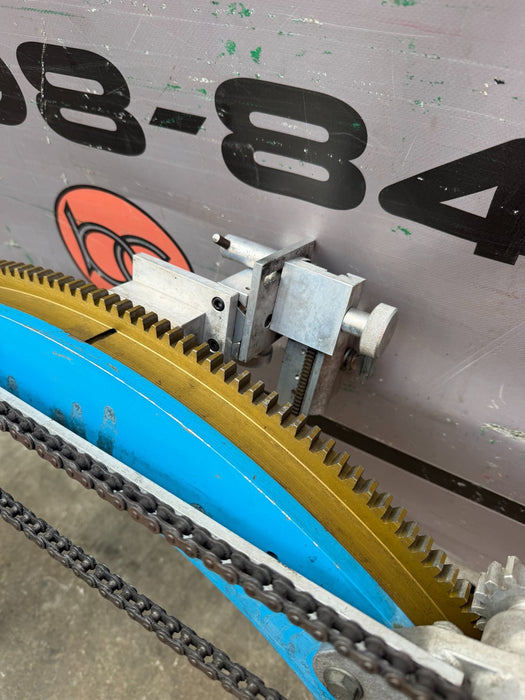

Key features include the innovative H&M Cuboid Spacer System, which simplifies machine setup by integrating spacers directly into the saddle, eliminating the frustration of lost parts. The machine also boasts the 7CS Solid Torch Holder, providing enhanced cutting accuracy and efficiency with its secure single-thumbscrew design for torch attachment and easy removal. H&M's unique saddle design places the saddle behind the ring gear, reducing the risk of warping during back-beveling and making replacement more economical if ever needed.
The machine includes the torch holder and dogs. Please note that the boomer chain, essential for securing the machine to the pipe during operation, is missing. A replacement chain will be required for full operational functionality. This unit has been calibrated to exacting tolerances of ±.025 in concentricity and ±.015 in squareness, ensuring reliable performance once the chain is replaced.
This H&M Beveling Machine #4 is an excellent opportunity for professionals needing a reliable pipe beveler, provided they are prepared to source and install a new boomer chain.
Item Specifics
|
Brand
|
H & M
|
|
Model
|
#4
|
|
Pipe Capacity
|
20" - 26"
|
|
Type
|
Pipe Beveling Machine
|
|
Weight
|
81 lbs (36.74 kg)
|
|
Features
|
Cuboid Spacer System, 7CS Solid Torch Holder, Separate Saddle Design
|
|
Included Components
|
Torch Holder, Dogs
|
|
Missing Components
|
Boomer Chain
|
|
Condition Notes
|
Used - Good condition, chain is missing and needs replacement.
|
