**Summary of Cart Caddy 5WP Tug
**Product Overview**

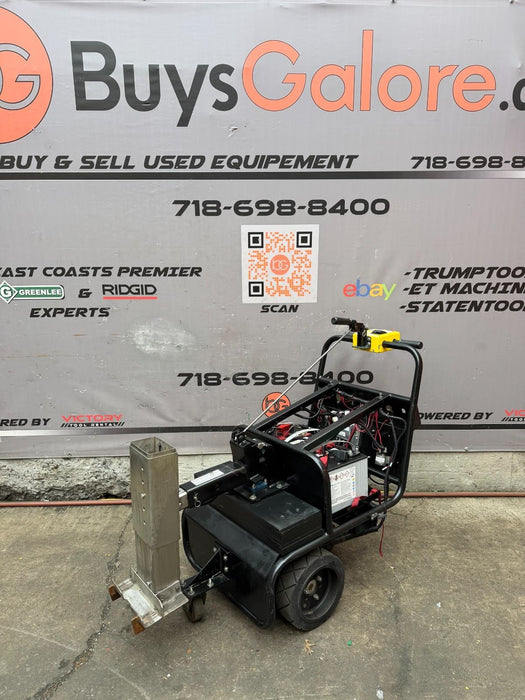

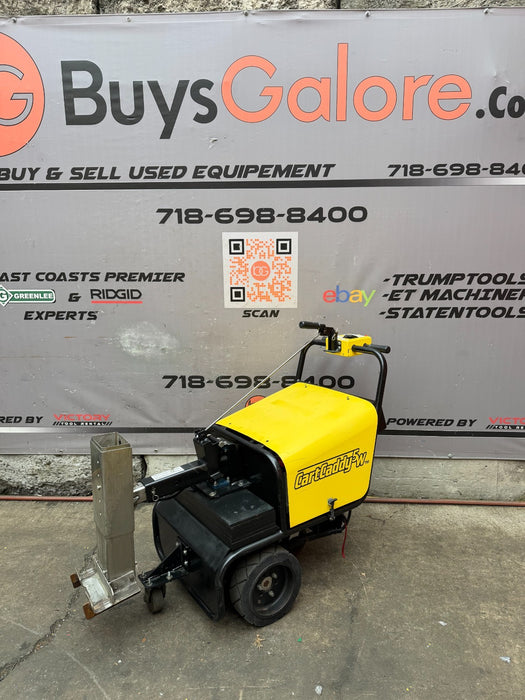

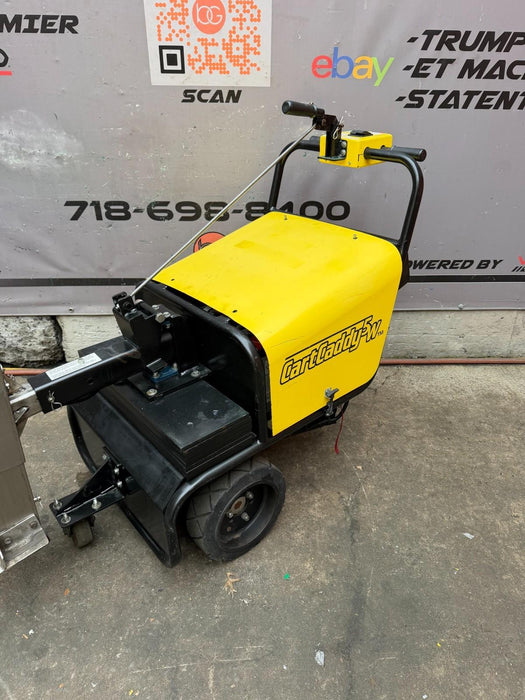

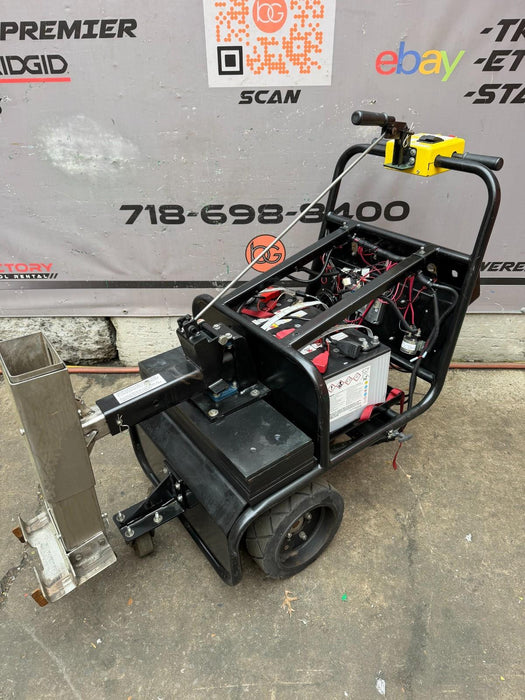

The **Cart Caddy 5WP** is a motorized electric tug designed to push, pull, and maneuver heavy carts and wheeled equipment. It is a more powerful upgraded version of the Cart Caddy 5W, with added weight over the drive tires for improved traction and heavier load capacity.
**Load Capacity**
- Can handle carts from **3,000 to 20,000 lbs**.
- Works with carts that have casters (wheels).
**Common Applications**
- Best suited for carts with **two front swivel casters** and **two rear straight casters**.
- Attaches to the swivel caster end for easy turning and maneuvering.
- Used to move a wide variety of parts, equipment, or materials in industrial or warehouse settings.
**Key Benefits**
- **Variable speed** (0–3 mph) in forward and reverse with a twist grip throttle – ergonomic and helps prevent carpal tunnel.
- Smooth, precise control for intricate maneuvering.

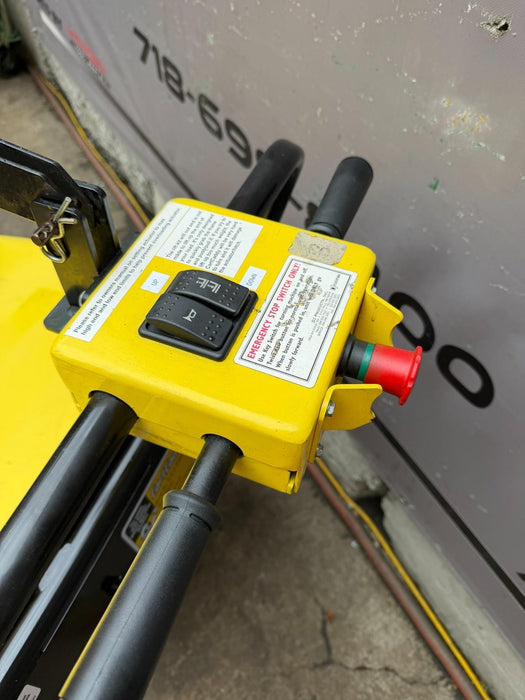

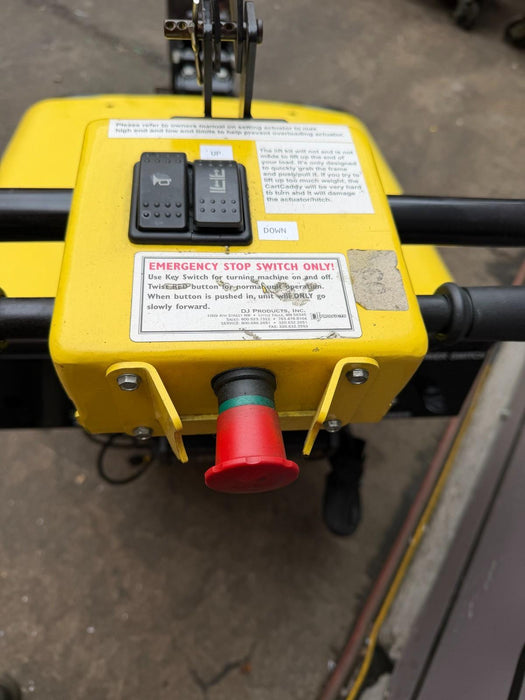

- **Safety stop switch** on the handle immediately stops the tug if needed.

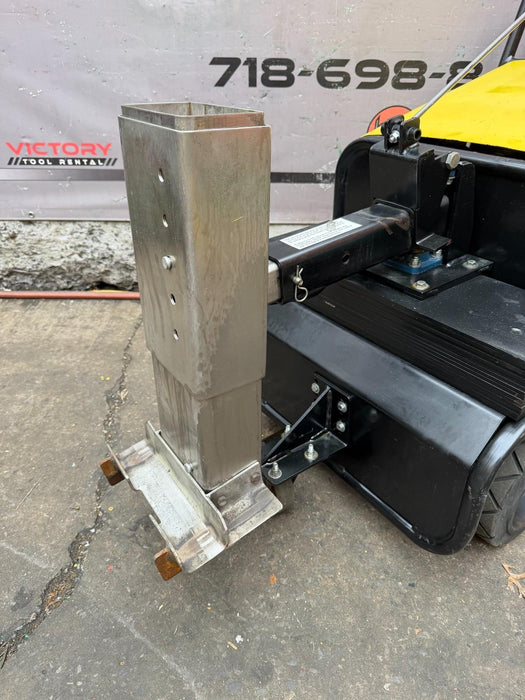

- Customized attachment + electric lift eliminates the need to build multiple cart attachments.
- Transfers weight from the cart to the tug’s drive wheels for better traction.

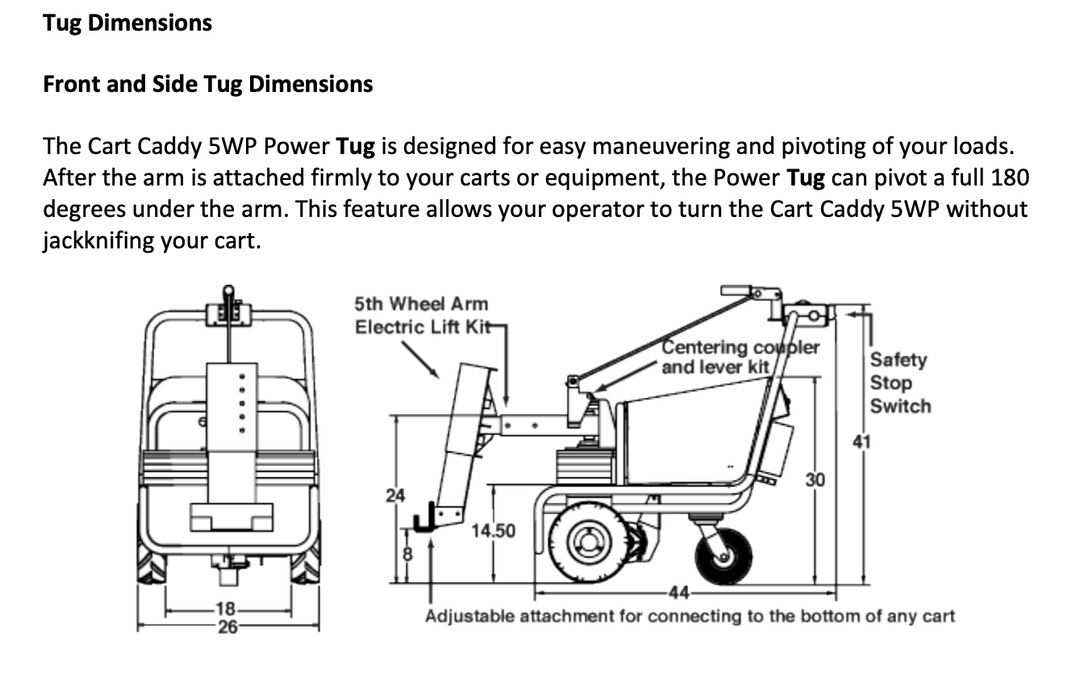

- Can pivot **180 degrees** under the arm, allowing easy 90-degree turns without jackknifing the cart.
**Features & Specifications**
**Standard Features:**

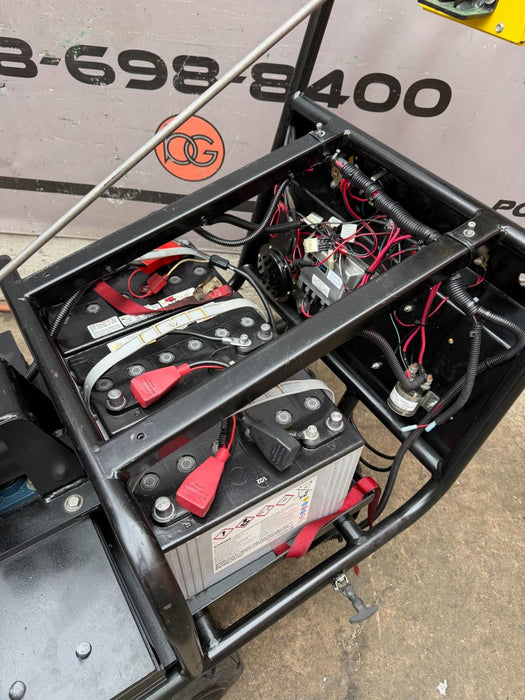

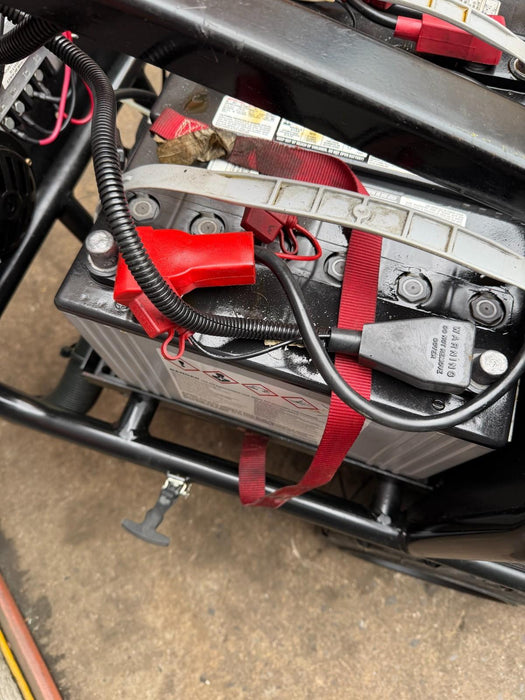

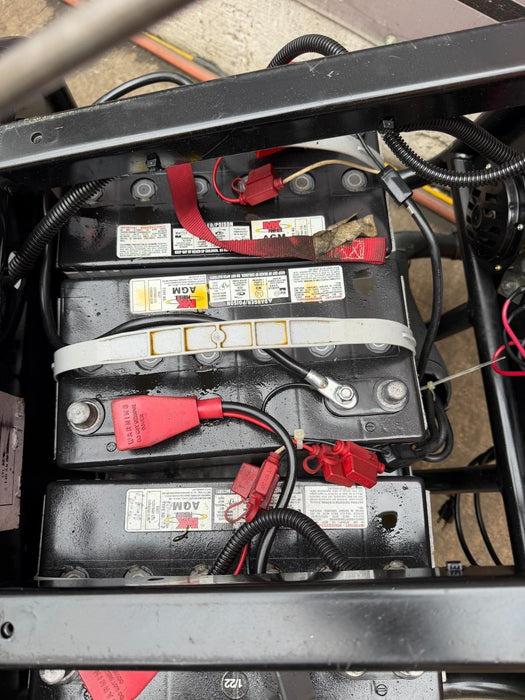

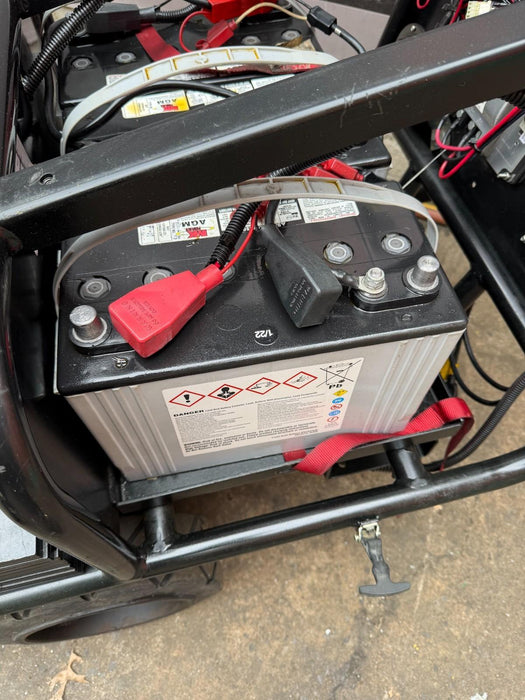

- 36-volt system with 3 × 12-volt batteries (115 Amp) – provides up to **16 hours** of continuous use (typically lasts two shifts).

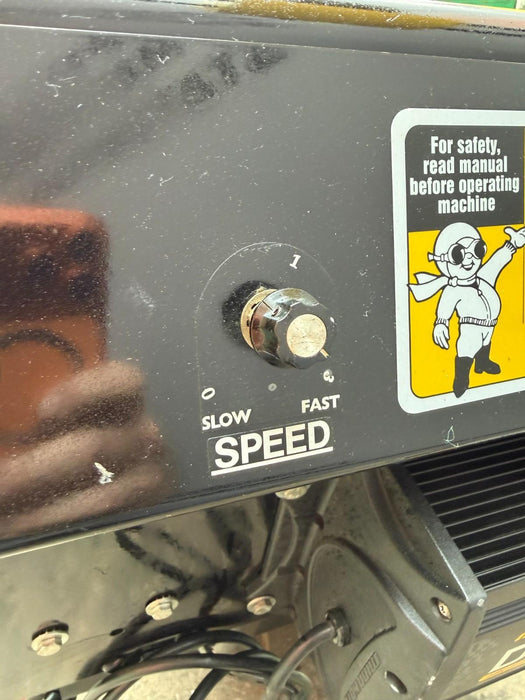

- Variable speed twist grip (0–3 mph forward/reverse).
- Tubular steel frame.
- 1500 lb. differential / transaxle.

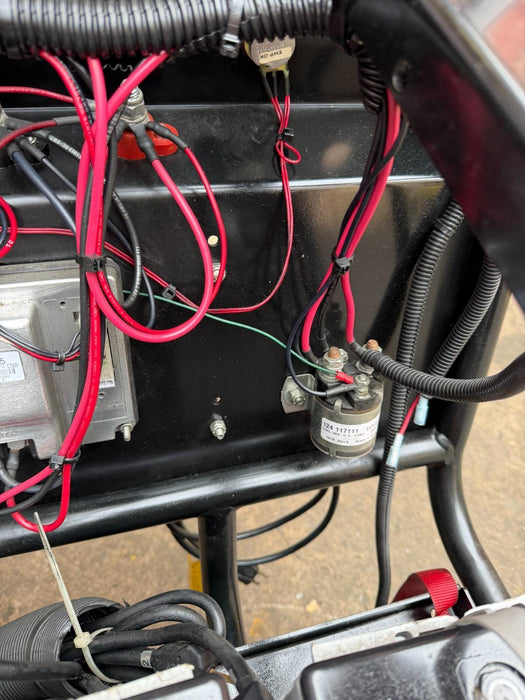

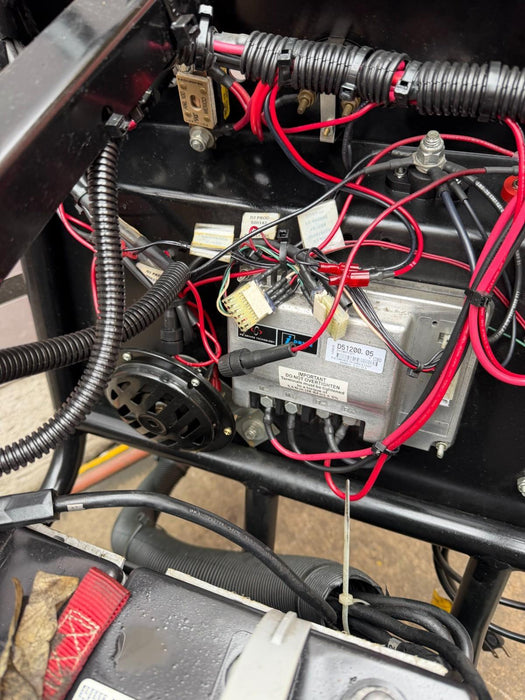

- High-tech speed controller.
- Neutral throttle braking.
- Adjustable acceleration/braking.
- Non-marking tires.

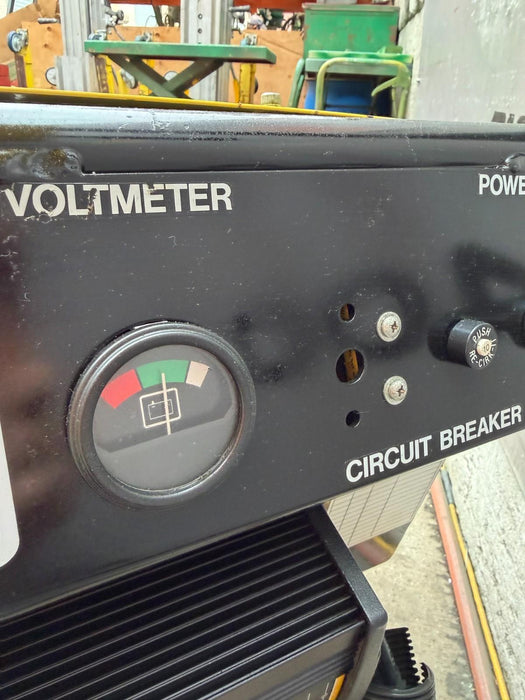

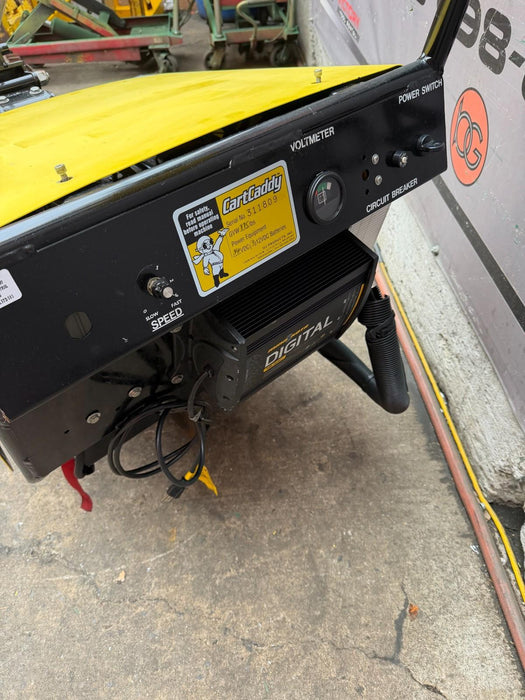

- Battery gauge.

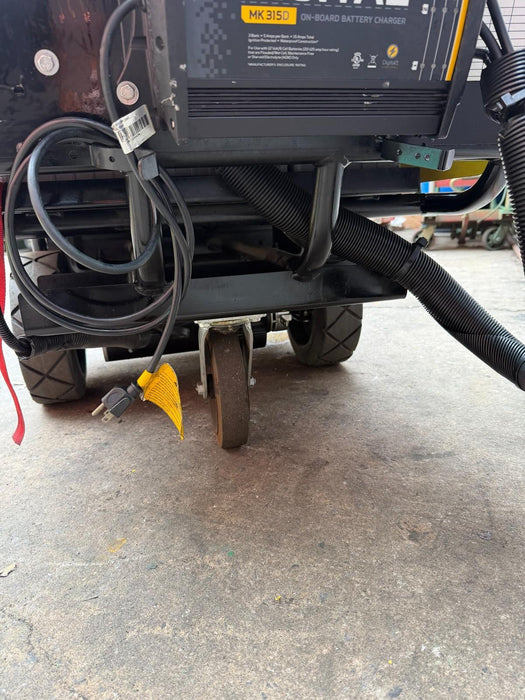

- Automatic charger.
**Optional Features:**
- 5th Wheel Arm
- Custom attachment
- Safety Stop Switch and Guard Kit
- Foam-filled tires (aggressive tread or non-marking)
- Maintenance-free or Gel Cell batteries
- Safety horn
- Safety light
- Dual tug wheels

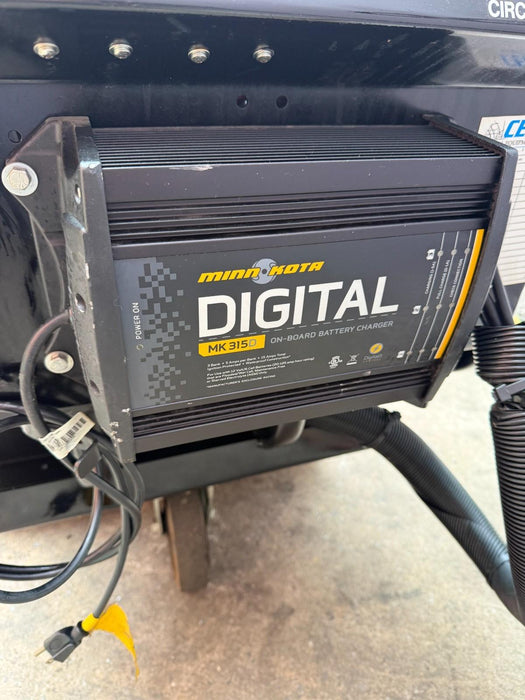

- Built-in battery charger
- High output tug controller
- Dual wheel kit / Dual motor drive kit
- Power steering
- Extra weight (up to 310 lbs)
**How It Works**

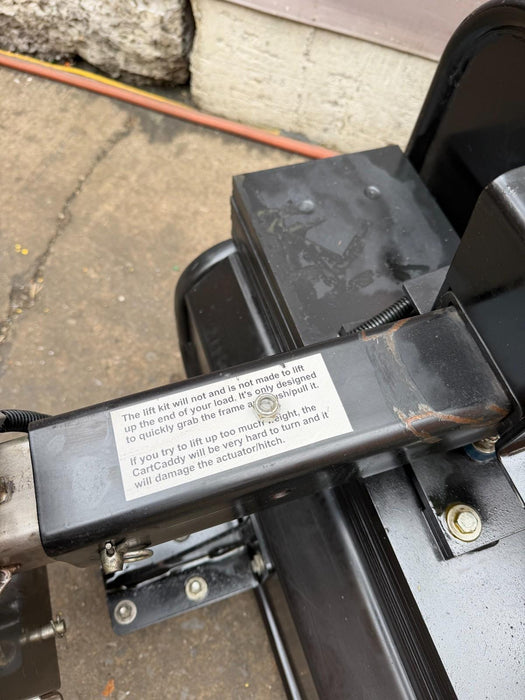

The tug’s arm lowers and raises to attach securely under the cart. Once attached, it transfers weight to the drive wheels for strong traction. The operator walks with the tug, controlling speed and direction easily while the unit handles the heavy load.
This motorized tug is ideal for facilities that regularly move heavy wheeled loads and want to reduce manual pushing/pulling strain and improve safety.
